M10 Modular Family
10-40 kW+
Compact oilfield power that scales one unit at a time.
The M10 family brings MITIS microturbine technology together with oil-free turbomachinery, flameless combustion, and a flexible DC architecture for rugged remote generation, methane abatement, CHP, and hybrid-energy systems.
Modular Output
Four familiar configurations. More output when needed.
M10
10 kW
Single-unit deployment
M20
20 kW
Two-unit configuration
M30
30 kW
Three-unit configuration
M40
40 kW
Four-unit configuration
Proven Core
Near-zero NOx. Oil-free operation. Built for the field.
Flameless combustion
Ultra-low NOx performance, below 20 ppmvd at 15% O2 on natural gas.
Air foil bearings
Fully oil-free rotating equipment lowers maintenance complexity and operating burden.
Broad fuel compatibility
Natural gas, LPG, biogas, flare gas, low-LHV gas, liquid fuels, H2 blends, and other streams containing sour content or moisture.
Configuration Options
Build the M10 around the site.
M10 Core Kit

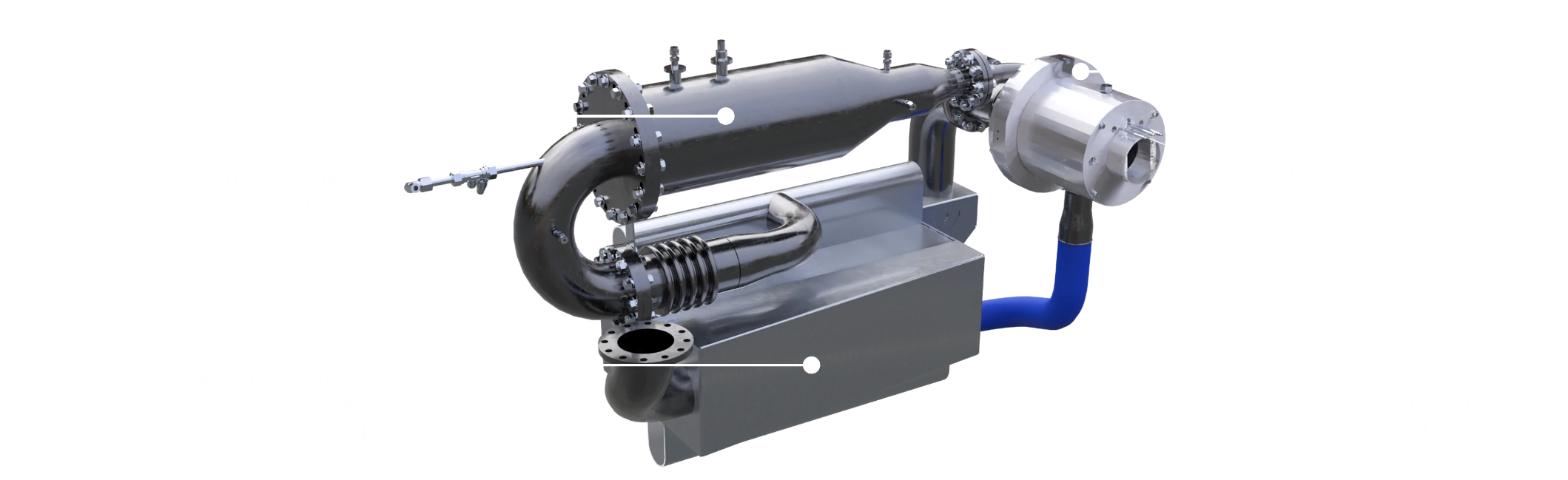

Combustor, recuperator, turbogenerator, bidirectional converter, and controls for system integrators.
M10 AC
A complete grid-connected machine with DC-to-AC conversion, auxiliaries, and soundproof canopy.
M10 DC
DC output for stacking multiple units, battery integration, or customer-supplied inverters.
Gas & Liquid Fuel Control
Low-pressure gas compression, high-pressure gas control, and liquid-fuel supply options.
CHP Heat Recovery
Optional stainless heat exchanger and exhaust bypass for up to 37 kW+ recoverable heat per unit.
Monitoring & Research
Performance-code access and expanded sensor packages for advanced integration and research.
Key Specifications
Compact by design. Quiet by enclosure.
Indicative values for early site screening. Additional engineering support is available for custom integration and fuel conditioning.
